Facet (Synovial) Cyst Rupture

Facet Cyst Rupture Technique

Facet (synovial) cysts are fluid-filled cysts arising from the facet joint capsule, most commonly at L4-5, that can cause spinal stenosis and radiculopathy. Percutaneous cyst rupture is a minimally invasive alternative to surgical decompression.

Step-by-Step Procedure

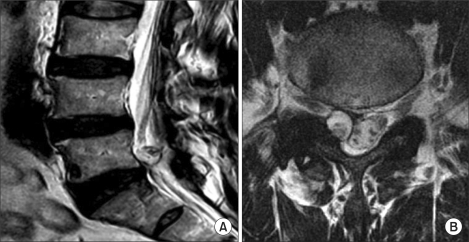

1. Pre-procedure MRI review: Essential to assess cyst characteristics — T2 signal intensity, wall thickness, size, and location
2. Patient positioning: Prone on fluoroscopy table
3. Target identification: Identify the facet joint at the level of the cyst (typically the ipsilateral joint)
4. Joint entry: Advance a 22-25 gauge spinal needle into the facet joint under fluoroscopic guidance using an oblique or lateral approach

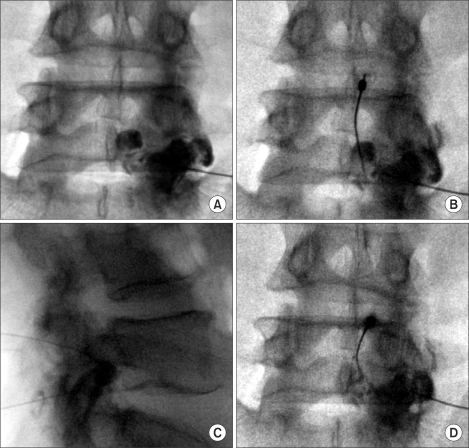

5. Arthrogram: Inject contrast to confirm intra-articular position and visualize the joint capsule and cyst communication
6. Pressurization: Slowly inject additional volume (steroid + anesthetic + contrast, typically 2-4 mL total) to pressurize the joint capsule and rupture the cyst
7. Indicators of successful cyst rupture:
   • Sudden loss of resistance during injection
   • Contrast seen flowing from the joint into the epidural space
   • Patient may report sudden change in symptoms

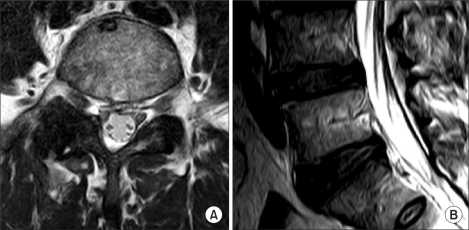

8. Post-rupture: The cyst decompresses, relieving neural compression

Facet Joint Access Technique (IPSIS)

Before attempting cyst rupture, the facet joint itself must be accessed. IPSIS provides detailed guidance on lumbar facet joint intra-articular access:

Fluoroscopic Setup

• Begin with true AP segmental imaging
• Progressively rotate the fluoroscope in ipsilateral oblique direction until the posterior (dorsal) joint line becomes visible as a lucency between cortical bone surfaces
• The first appearance of crisp cortical margins bounding a lucent joint space identifies the most dorsal and accessible portion of the joint
• Typical obliquity: approximately 15 degrees for upper lumbar, 30 degrees for L3-4, and 45 degrees for L4-5 and L5-S1
• Avoid excessive obliquity, which may target the inaccessible ventromedial joint

Needle Entry

• Target the superior or inferior recess of the joint when the midportion is hypertrophic
• For mid-joint access, the lateral edge of the IAP provides an ideal initial target
• Use a medial-to-lateral needle advancement to avoid unseen osteophytes (which arc from lateral to medial)
• Signs of successful joint entry: needle advances a few mm deeper than periosteum, tighter tissue grip on the needle, a cork/rubber tactile feel, or medial needle deflection
• For cyst rupture, a larger bore needle (20-22G) may be used in addition to the standard 25-27G spinal needle

L5-S1 Special Considerations

• The iliac crest may overlap the joint when the fluoroscope is obliqued
• Increasing the cephalad tilt of the image receptor usually resolves this
• A direct posterior approach to the inferior recess may occasionally be required

Arthrogram Confirmation

• Inject 0.1-0.3 mL contrast through microbore tubing with real-time fluoroscopy to confirm intra-articular position
• Contrast typically fills the superior and inferior recesses, creating a dumbbell appearance on AP/oblique views
• Note that facet joint capsules are often fenestrated — injectate may spread to the epidural space, contralateral facet via the space of Okada, or to vertically adjacent joints via pars defects

Combined Approach: TFESI + Cyst Rupture

Many practitioners perform both procedures in the same session:

• TFESI first: Delivers epidural steroid to reduce inflammation at the nerve root and provides some anesthesia for the cyst rupture
• Cyst rupture second: Mechanical decompression via pressurization
• The combination may improve success rates compared to either approach alone
• Alternatively, some reverse the order based on preference

MRI Features That Predict Success

Favorable features (higher rupture success):

• T2 hyperintense (bright): Indicates fluid-filled cyst — more likely to rupture
• Thin wall: Less resistance to pressurization
• Acute/subacute onset: Weeks to a few months of symptoms

Unfavorable features (lower rupture success):

• T2 hypointense or mixed signal: Chronic, organized cyst material
• Thick wall: Fibrotic capsule resists rupture
• Calcified walls: Cannot be ruptured with pressure
• Gas-filled cysts: Vacuum phenomenon within the cyst

IPSIS Cyst Rupture Step-by-Step

IPSIS provides specific technical details for the rupture procedure:

1. Pre-procedure comfort: A transforaminal epidural steroid/anesthetic injection at the compressed nerve level may reduce procedural discomfort by blocking the nerve before cyst rupture is attempted
2. Joint access: Enter the facet joint at the level of the cyst using fluoroscopic guidance as described above
3. Aspiration attempt: Aspirate through the needle — fluid may be obtained if the cyst communicates freely with the joint
4. Joint/cyst filling: Inject 1-2 mL of contrast into the facet joint to distend the capsule and fill the cyst
5. Pressurization: Inject up to 1-6 mL total of contrast or saline — the volume must exceed the combined capacity of the joint and cyst
6. Signs of successful rupture: Loss of tactile resistance to injection, extravasation of contrast from the cyst into the epidural space on fluoroscopy
7. Caution: Rupture of the joint's inferior recess may cause loss of resistance WITHOUT actual cyst rupture or epidural contrast spread
8. Post-rupture injection: After cyst rupture, inject a mixture of steroid (0.25-0.5 mL) and local anesthetic (0.5 mL) through the joint

MRI Criteria for Cyst Rupture Candidacy (IPSIS)

IPSIS specifically describes favorable and unfavorable MRI features:

Favorable for rupture:

• T2-hyperintense signal (similar to CSF) indicating fluid content
• Thin wall without obvious internal structure
• No calcification or inspissated material

Unfavorable for rupture:

• Thick dark wall on T2-weighted images
• T2 hypointensity or mixed signal within the cyst
• T1 hyperintensity (suggesting blood products or proteinaceous material)
• Calcification within the cyst wall (seen on CT)
• Internal structure or debris apparent within the cyst

What Happens When Rupture Fails

The weakest point of the joint capsule tears during pressurization, but sometimes that tear is posterior rather than into the cyst itself. Even in these cases, some patients improve — possibly from lavaging the joint with steroid and allowing fluid to leak through the capsule. However, if symptoms persist after a failed rupture attempt, surgical decompression is indicated.
